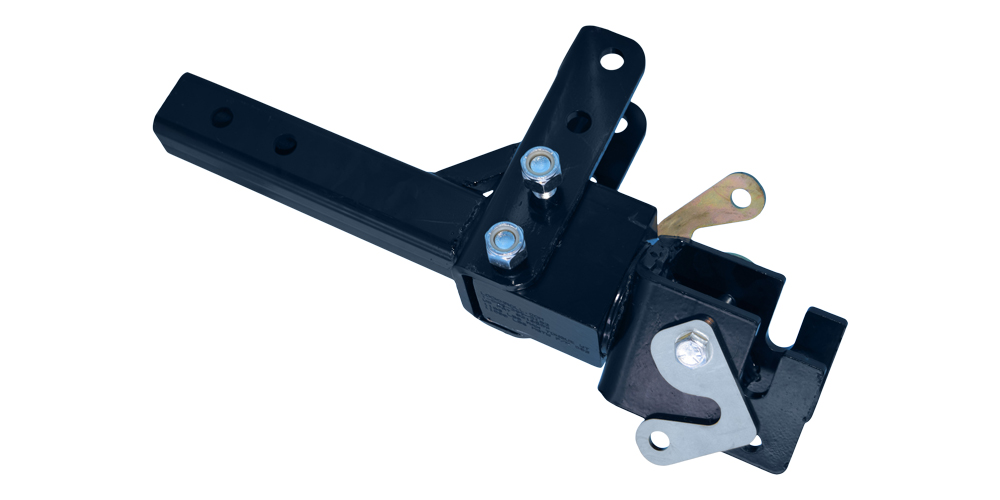

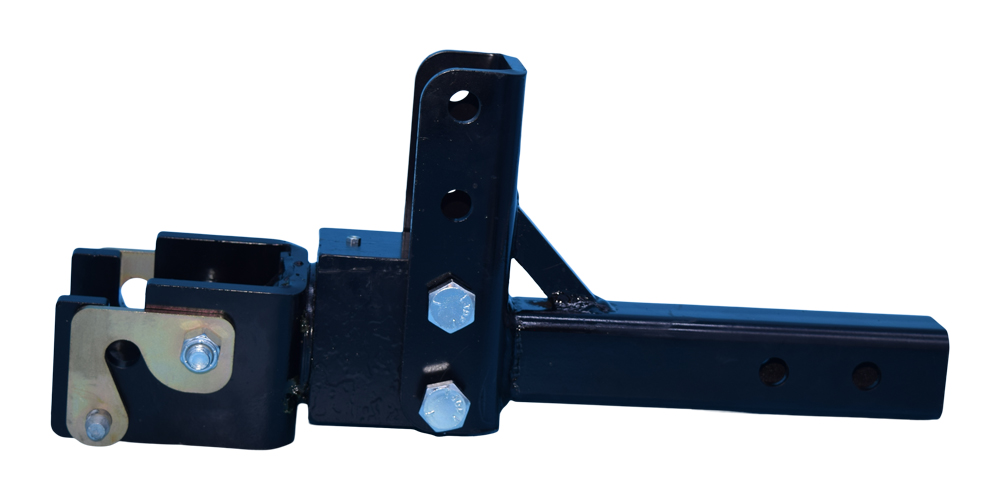

VS503 and VS505 Package

$270.00

Application: 2″ x 2″ trailer hitch receivers
Maximum gross trailer weight: 11,000 lbs
Maximum tongue weight: 1,100 lbs
The inside width of the channel is 3-1/16″. Bracket material is High Strength/Low Alloy ASTM A572 Grade 50. There are 4 sets of holes allowing for 3-positions. Bracket is welded to a 2″ sq x 1/4″ thick wall x 9-1/2″ long tube with 2 sets of receiver pin holes. Tubing is high quality ASTM A500 with a minimum tensile strength of 58,000 PSI and 23% elongation. The maximum height adjustment of the VS 503 VS505 combination is 5-1/2″ as measured from the center of the receiver tube to the center of the Lock N Roll coupling shaft on your trailer. The horizontal distances from the 5/8″ receiver pin holes to the center of the coupling shaft are 14-1/4 and 16-1/4.

Description
Additional information

Description

Combination of VS505 and VS503: The inside width of the channel is 3-1/16″. Bracket material is High Strength/Low Alloy ASTM A572 Grade 50. There are 4 sets of holes allowing for 3-positions. The channel is welded to a 2″ sq x 1/4″ thick wall x 9-1/2″ long tube. Tubing is high quality ASTM A500 with a minimum tensile strength of 58,000 PSI and 23% elongation. The maximum height adjustment is 5-1/2″ as measured from the center of the receiver tube to the center of the Lock N Roll coupling shaft on your trailer. The horizontal distances from the 5/8″ receiver pin holes to the center of the coupling shaft are 14-1/4 and 16-1/4.
